Input Signal Edge Detection using Software

In the digital design, sometimes we need to detect the transition from '0' to '1', or '1' to '0' of a signal.

For example, suppose you design a counter with an input pin connected to a push-button. When you push the button every time, the counter will count by one. The circuit diagram is shown in Figure 1.

SoftwareEdgeDectector s
Figure 1
: Digital Counter

In other words, the counter counts the number of times the switch transitions from open to the closed state. The pseudoscope is shown as follows:

if (SW1 from open to close) counter ++;

Some microcontrollers provide edge detection circuitry, and you can configure edge detection on the desired pins. In this example, we configure it on PA3. If the edge is detected, a flag will be set in the status register, or trigger an interrupt to the CPU. In your C code, you need to check the status register or implement an ISR function to increase the counter value. But here, we only discuss how to implement edge detection using the software.

Implementation of Edge Detection Algorithms

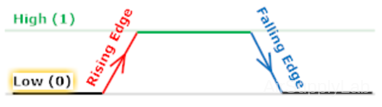

SIgnalEdges
Figure 2

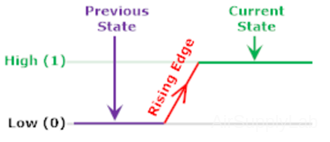

: Rising Edge and Falling Edge

If a digital signal rises from low (0) to high (1), this transition is called "rising edge." On the contrary, if it drops from high to low, it is called a "falling edge." Each transition has two states — previous state and current state. The current state of input pins can be read from the port DATA register, but the previous state must be stored in a variable.

Every time you read the current input state, compare it to the previous state value. If the current state is not equivalent to the previous state, a transition had occurred. Before the next cycle starts to read the current input state, the previous state needs to be updated by the current state.

Implementation of Edge Detection in C

There are two methods to implement software edge detection:

  1. Simple if statement
  2. State machine

Falling Edge Detection

FallingEdge

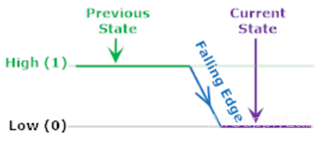

Figure 3: Falling Edge

The falling edge occurs when the signal drops from high (1) to low (0). Hence, if the previous state is high and the current state is low, then the falling edge had just happened.

For example, the following system will toggle LED when the user presses the SW1. It means the LED will be lit when you press SW1. If the user presses the SW1 again, the LED will be turned off.

NegIn PosOut s
Figure 4: An Example of Detecting the Falling Edge

Simple if Statement

In the code, two variables (swState, swPreState) are needed to store the previous and current states for SW1.

  1. Read the current state of the SW1 button in variable swState.
  2. If the previous state (swPreState) is logic 1 (that means the SW1 button was released) and the current state (swState) is logic 0 (the SW1 is pressed), the SW signal is on the falling edge, and then changes the LED status.
  3. Update the current state (swState) to the previous state (swPreState), then go to step 1 to check the SW1 button again.

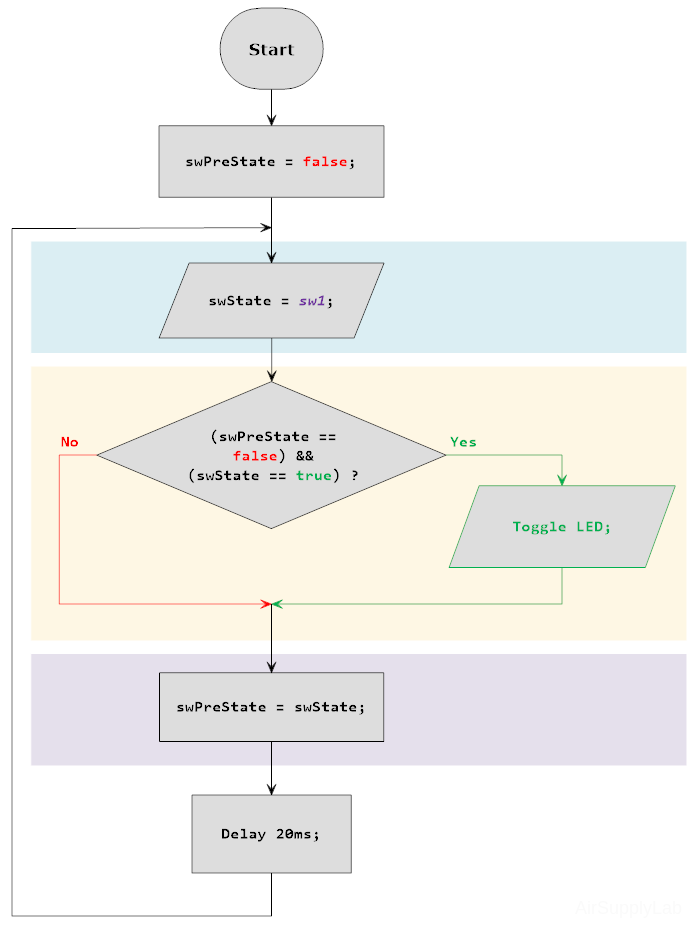

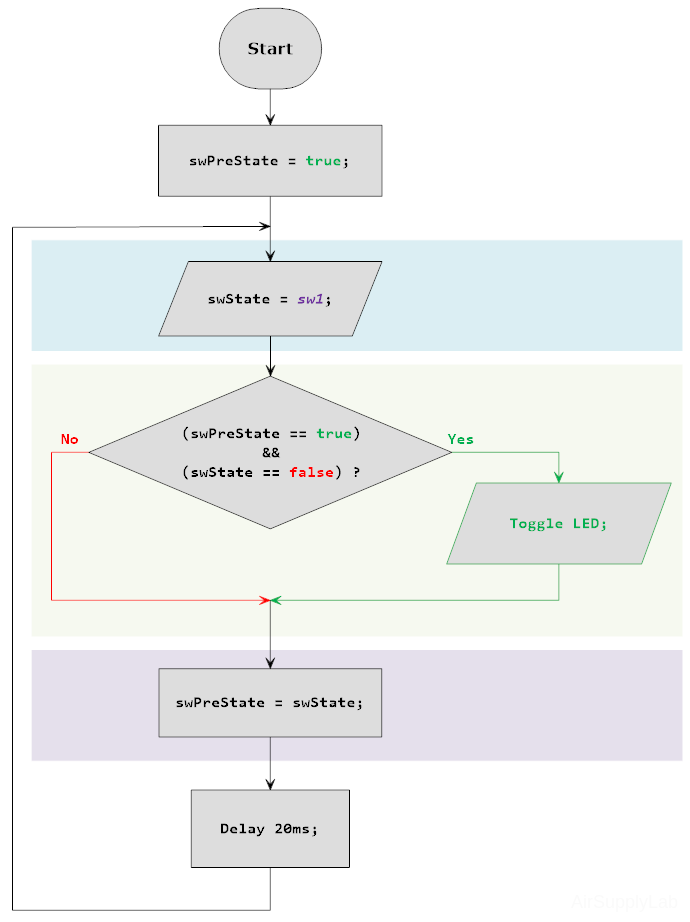

FC DetectFallingEdge s
Figure 5: Flowchart for Falling Edge Detection

State Machine

The Mealy state machines also can be used in this case.

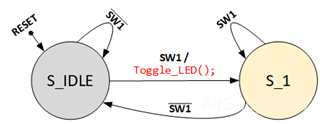

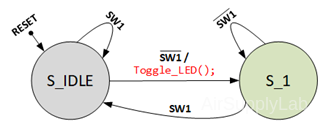

SM DetectFallingEdge s
Figure 6
: Mealy State Machine for Falling Edge Detection
