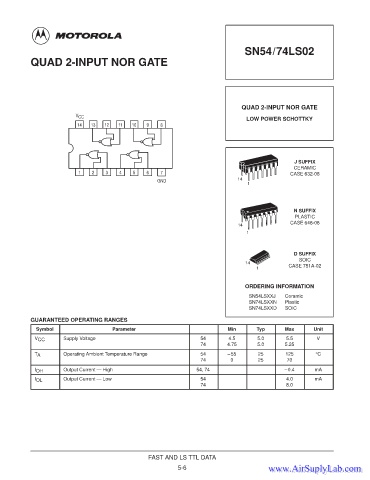

SN54/74LS02
           QUAD 2-INPUT NOR GATE








                                                                                 QUAD 2-INPUT NOR GATE
                          V CC
                                                                                   LOW POWER SCHOTTKY
                           14  13   12  11   10   9   8





                                                                                                  J SUFFIX
                                                                                                  CERAMIC
                           1    2   3    4   5    6   7                                          CASE 632-08
                                                     GND                        14
                                                                                   1



                                                                                                  N SUFFIX
                                                                                                   PLASTIC
                                                                                                 CASE 646-06
                                                                                14
                                                                                   1


                                                                                                  D SUFFIX
                                                                                                    SOIC
                                                                                  14
                                                                                                 CASE 751A-02
                                                                                      1

                                                                                  ORDERING INFORMATION
                                                                                   SN54LSXXJ   Ceramic
                                                                                   SN74LSXXN   Plastic
                                                                                   SN74LSXXD   SOIC

           GUARANTEED OPERATING RANGES
             Symbol                   Parameter                             Min       Typ      Max       Unit
            V CC      Supply Voltage                               54        4.5      5.0       5.5       V
                                                                   74       4.75      5.0      5.25
            T A       Operating Ambient Temperature Range          54       –55       25       125       °C
                                                                   74        0        25        70
            I OH      Output Current — High                       54, 74                       –0.4      mA
            I OL      Output Current — Low                         54                           4.0      mA
                                                                   74                           8.0













                                                  FAST AND LS TTL DATA
                                                            5-6
