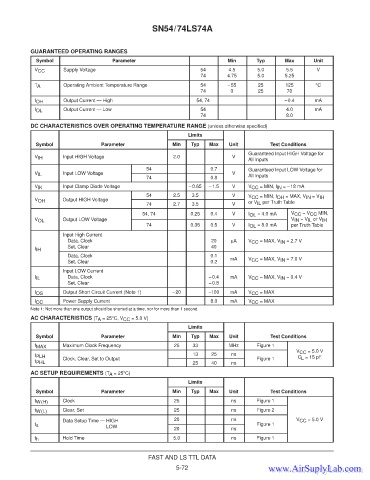

SN54/74LS74A



           GUARANTEED OPERATING RANGES
             Symbol                   Parameter                             Min       Typ      Max       Unit
            V CC      Supply Voltage                               54        4.5      5.0       5.5       V
                                                                   74       4.75      5.0      5.25
            T A       Operating Ambient Temperature Range          54       –55       25       125       °C
                                                                   74        0        25        70

            I OH      Output Current — High                       54, 74                       –0.4      mA
            I OL      Output Current — Low                         54                           4.0      mA
                                                                   74                           8.0

           DC CHARACTERISTICS OVER OPERATING TEMPERATURE RANGE (unless otherwise specified)
                                                               Limits
             Symbol               Parameter               Min   Typ   Max    Unit         Test Conditions
                                                                                   Guaranteed Input HIGH Voltage for
            V IH      Input HIGH Voltage                  2.0                 V
                                                                                   All Inputs
                                                 54                    0.7         Guaranteed Input LOW Voltage for
                                                                                                        g
            V         Inp u t   LOW   V oltage                                V V
                      Input LOW Voltage
            V IL IL
                                                 74                    0.8         All Inputs
            V IK      Input Clamp Diode Voltage                 –0.65  –1.5   V    V CC  = MIN, I IN  = –18 mA
                                                 54       2.5    3.5          V    V CC  = MIN, I OH  = MAX, V IN  = V IH IH
                                                                                                      IN
                                                                                    CC
                                                                                             OH
                      Output HIGH Voltage
            V         O u tp u t   HIGH   V oltage
            V OHOH
                                                 74       2.7    3.5          V    or V IL  per Truth Table
                                                54, 74          0.25   0.4    V    I OL  = 4.0 mA  V CC  = V CC  MIN,
                       u
                           LOW
                               V

                        tp
                         u

                          t
                                oltage
                      O
            V         Output LOW Voltage                                                         V
                                                                                                 V IN =V IL or V IHIN  = V IL  or V IH
            V OLOL
                                                 74             0.35   0.5    V    I OL  = 8.0 mA  per Truth Table
                      Input High Current
                       Data, Clock                                     20    mA    V CC  = MAX, V IN  = 2.7 V
                       Set, Clear                                      40
             IH
            I IH
                       Data, Clock                                     0.1
                       Set, Clear                                      0.2   mA    V CC  = MAX, V IN  = 7.0 V
                      Input LOW Current
            I IL       Data, Clock                                    –0.4   mA    V CC  = MAX, V IN  = 0.4 V
                       Set, Clear                                     –0.8
            I OS      Output Short Circuit Current (Note 1)  –20      –100   mA    V CC  = MAX
            I CC      Power Supply Current                             8.0   mA    V CC  = MAX
           Note 1: Not more than one output should be shorted at a time, nor for more than 1 second.
           AC CHARACTERISTICS (T A  = 25°C, V CC  = 5.0 V)
                                                               Limits
             Symbol               Parameter               Min   Typ   Max    Unit         Test Conditions
            f MAX     Maximum Clock Frequency              25    33          MHz      Figure 1
                                                                                                   V V CC  = 5.0 V
                                                                                                        5 0 V
                                                                 13    25     ns
             PLH
            t PLH                                                                                   C L  = 15
                                                                                                    C L = 15 pF F
                      Clock ,  Clear ,  Set   to   O u tp u t                         Figure 1 1
                      Clock Clear Set to Output

                                                                                        u
                                                                                         re
                                                                                      Fig
            t PHL                                                25    40     ns
           AC SETUP REQUIREMENTS (T A  = 25°C)
                                                               Limits
             Symbol               Parameter               Min   Typ   Max    Unit         Test Conditions
            t W(H)    Clock                                25                 ns      Figure 1
            t W(L)    Clear, Set                           25                 ns      Figure 2
                      Data Setup Time — HIGH               20                 ns                   V CC  = 5.0 V

                                                                                      Fig
                                                                                        u
                                                                                         re
            t t s                                                                     Figure 1 1
                      Data Setup Time — LOW                20                 ns
            t h       Hold Time                           5.0                 ns      Figure 1
                                                  FAST AND LS TTL DATA
                                                           5-72
